I-Droid 01





Just recently acquired an I-Droid:01 (Dutch version i-Qbot:01)


My other projects got put on hold for a bit.

I-Droid:01 is not as old as Cybot. I-Droid:01 started life back in 2005. It has much better hardware inside it.

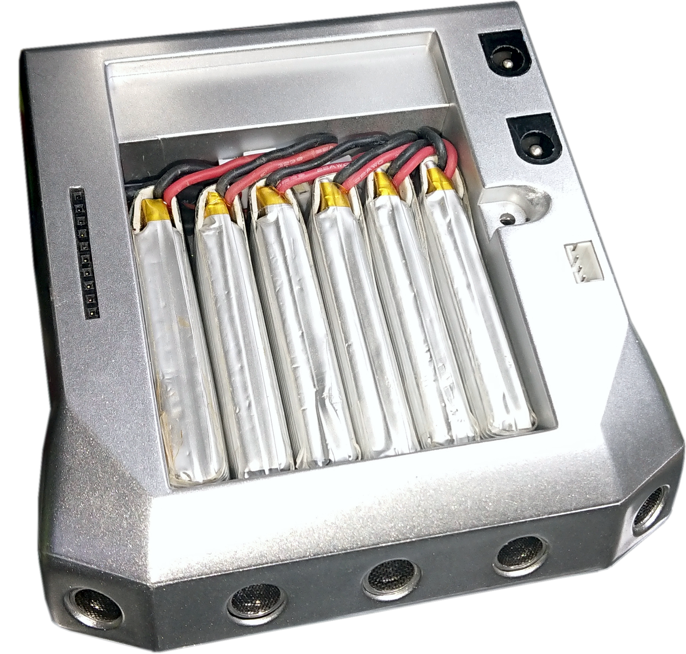

I have done a modification to the power pack like I did with my other projects. I think Li-Po are great. (I will show details if asked)

I-Droid_01_Battery_Box_Power_Circuit.pdf

I also placed the video cables inside the robot.

I have made a new PC remote controller for it.
The original being made when we had Windows XP.
I had difficulty getting the original to work on windows 10.

My work is always work in progress but I think I have covered most, apart from the claw, I do not have one.


Download: I-Droid_01_Remote_Controller.zip  ver. 2.0.1.2


I have added a file explorer so that you can view Photos taken by I-Droid:01

Updated the view of *.c files to give them an editor look. (credit here for FCTB)

This is the fist time I have written something that receives video via Bluetooth.

Like most robot they have there pros and cons.
One cons with this robot is that it has not a very powerful drive system, sometimes it struggles with uneven terrain.
So I will also be making a modification to the drive wheels in the future.

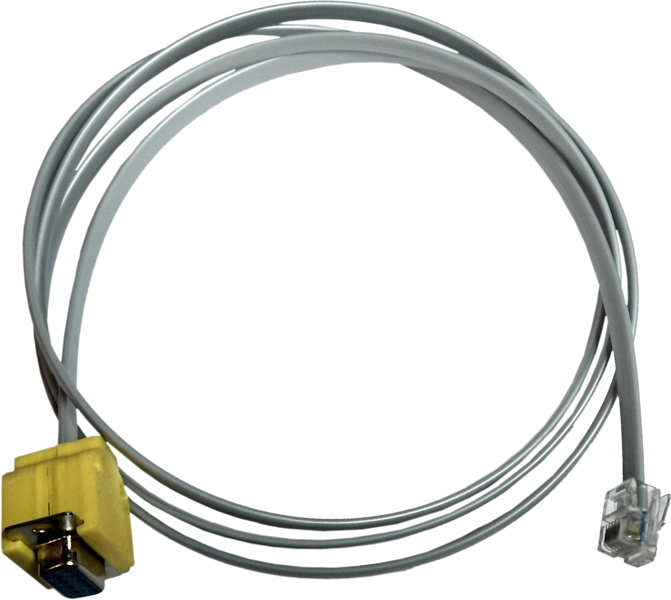

Didn't Have a Serial Cable so made my own.


Colour

RJ12 Pins

RS232 Pins

Function

Blue

1

NC

None

Yellow

2

5

GND

Green

3

8

CTS

Red

4

3

TD

Black

5

7

RTS

White

6

2

RD

I do not have a tool to crimp an RJ12(6P6C) to the end of a cable, so I bought a ready made cable from eBay, which had an RJ12 on each end. I cut it in half then soldered a 9 pin D-Sub to the cut end. (The colours of the wire may not be the same, it's the pin numbers that matter.)

Done a tool to control I-Droid with a TV Infrared Remote.



Bluetooth Dongle.

I don't have an original Bluetooth dongle for the PC.
I think it was a BELKIN F8T013.
I have tried several from eBay, the one that currently works best for me is one that has the CSR 4.0 (formerly Cambridge Silicon Radio) manufactured chip.


Android Application.

I have decided to make an Android application to run on my phone.
The Application has been tested on the following:
  • My phone is SONY, Android 9.0 (Pie) API 28, The video does not work correctly on the SONY.
  • My tablet is an ASUS, Android 5.1 (Lollypop) API 22, The application works OK on this.
  • My sons phone is SAMSUNG, Android 10.0 (Q) API 29, The application works OK on this.
  • I have an old HTC Android 4.0 (Ice Cream Sandwich) API 14, hacked to take Android 6.0 (Marshmallow) API 23.
The Minimum Android version is: Android 5.1 (Lollipop) API 22.
The Target Android version is: Android 9.0 (Pie) API 28.

I don't know why I am having issues with my SONY phone yet.
When it receives data via Bluetooth the data stream is very very very Slow. ZZzzzzzz.
If anyone knows of this issue and a fix please let me know.

Current version is: 1.2 (any previously installed version should be uninstalled first)

Connection Screen:
The "Paired Bluetooth Devices" on the left of the screen is a scrollable list of current paired Bluetooth devices on the Android Device.
Scroll the list to find I-Droid01. (you have to have paired I-Droid before running the Application)
Tap I-Droid01 text to select, then tap Connect.
If it connect OK, the next screen will appear.

Controller Screen:
I hope this is self explanatory.

Screen shot with video:
Max video resolution is 160x120.

To close the application, click the square button on your navigation bar, wait to see the X on the application and click it to close.




To be continued. (At sometime)
